Stainless Steel

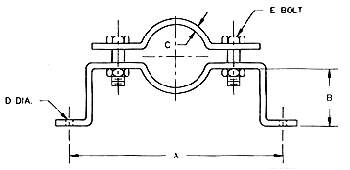

Offset Pipe Clamp
Figure 63

Note: Available in ductile iron pipe size.

Note: Additional sizes 14" to 36" available by special order.

Service:
For supporting horizontal or vertical pipelines.

Material:
304/316 Stainless steel and various alloys.

Ordering:
Specify size of pipe, standard or ductile iron and type of material.


Pipe Size Max. recom.
load, lb.
A B E
Bolt
C
Steel
D
Hole
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
190
190
190
190
190
420
420
420
610
610
870
870
1050
1200
8-1/2
8-3/4
9-1/4
9-3/4
10
11-1/4
11-3/4
12-7/8
13-7/8
15-5/8
16-3/4
18-3/4
21-1/2
24-7/8
2-7/16
2-3/4
2-7/8
3-1/16
3-3/16
3-1/2
3-3/4
4-1/16
4-9/16
5-1/16
5-5/8
6-5/8
7-3/8
8-3/8
3/8x1-1/4
3/8x1-1/4
3/8x1-1/4
3/8x1-1/4
3/8x1-1/4
3/8x1-1/2
3/8x1-1/2
3/8x1-1/2
3/8x1-1/2
1/2x1-3/4
1/2x1-3/4
1/2x1-3/4
5/8x2-1/2
5/8x2-1/2
1/8x1
1/8x1-1/4
1/8x1-1/4
1/8x1-1/4
1/8x1-1/4
3/16x1-1/4
3/16x1-1/4
3/16x1-1/4
3/16x1-1/2
3/16x1-1/2
3/16x2
3/16x2
1/4x2-1/2
1/4x2-1/2
7/16
7/16
7/16
7/16
7/16
9/16
9/16
9/16
9/16
11/16
11/16
11/16
13/16
13/16
